Airpad Scanner
Void measuring device
• Compact void measuring device for optimum void filling
• Calculates the optimum number of air cushions for each carton.
• Ensures the best protection for each carton
• Reduces product damages
• No learning curve for new operators to pack with the best protection
• In combination with the SHOOTER for improved productivity

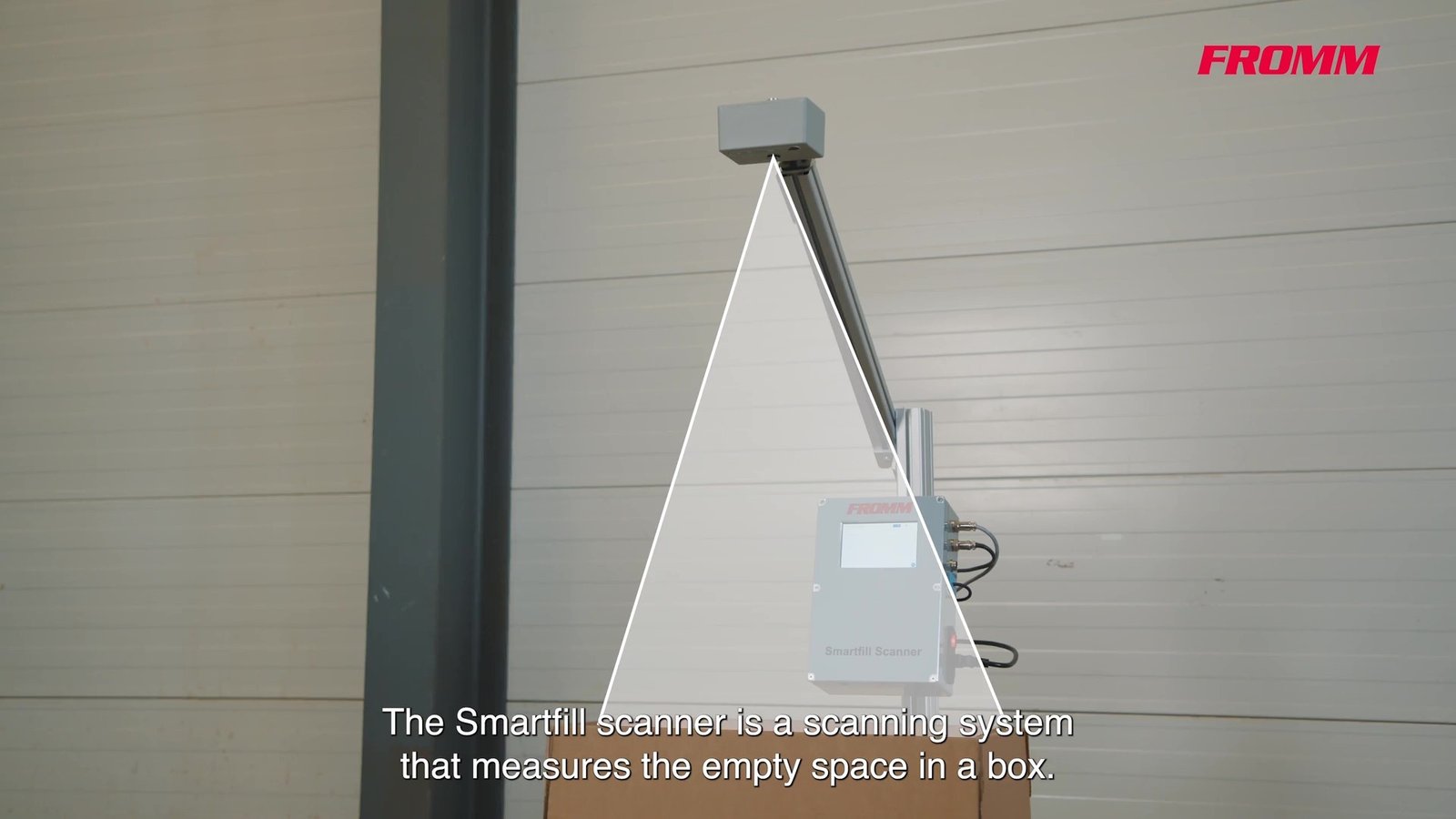

The Package is detected by the stereo camera and the volume is scanned. The Digital display shows the optimum number of air cushions needed for the carton.
Airpad Shooter
Cutting and dispensing air-cushion device
• Automatic air cushion separation with high speed transport for quick release, low cycle time (300 ms for a 150mm / 6″ cushion)
• Dispense pre-separated cushions at arm’s length of the operator for optimum working conditions
• Large touch screen operating panel, wireless for easy integration
• 3 operating modes
• Manual with foot pedal or voice control
• Semi automatic with pre-defined lengths to choose from the touch panel
• Automatic replenishment of a pre-set number of cushions
• In connection with the AIRPAD Scanner
Airpad Scanner
Void measuring device
• Power supply: 90 – 240 V, 50 / 60 Hz
• Communication port: RJ485
• Connectors: USB – A, 5-pins, 3-pins
• Weight: 3.5 kg | 11.5 Lbs (without options)
• Speed: up to 20 cartons/min
• Carton size up to 600 x 500 x 600 L x W x H (mm) / 24 x 20 x 24 (in)
• Item code: 50.100250
Airpad Shooter
Cutting and dispensing air-cushion device
• Speed: up to 60 m/min / 200 ft/min
• For films up to 400 mm / 16″ wide
• Power supply: 110 – 240 V, 50 / 60 Hz
• Communication ports: RJ485, USB 4.0, Coax
• Monitoring and tracking system for easy maintenance
• Weight: 25.5 kg | 82.0 Lbs (without options)
• Item code: 50.2130
The right number of air cushions for an optimum protection with the best productivity
Compact Void Fill Packaging
